H3C Technology Co., Ltd. provides various ways for you to obtain documentation, through which you can obtain the product documentations and those concerning newly added new features. The documentations are available in one of the following ways:

l CD-ROMs shipped with the devices

l H3C website

l Software release notes

1.1 CD-ROM

H3C delivers a CD-ROM together with each device. The CD-ROM contains a complete product document set, including the operation manual, command manual, installation manual, and compatibility manual. After installing the reader program provided by the CD-ROM, you can search for the desired contents in a convenient way through the reader interface.

The contents in the manual are subject to update on an irregular basis due to product version upgrade or some other reasons. Therefore, the contents in the CD-ROM may not be the latest version. This manual serves the purpose of user guide only. Unless otherwise noted, all the information in the document set does not claim or imply any warranty. For the latest software documentation, go to the H3C website.

1.2 H3C Website

To query and download the documentation for this version, go to the website of H3C with reference of the following Table.

Table 1-1 Acquire product documentation from the H3C website

How to apply for an account	Access the homepage of H3C at http:// www.h3c.com and click on Registration at the top right. In the displayed page, provide your information and click on Submit to register.
How to get documentation	Approach 1: In the homepage of H3C at http:// www.h3c.com, select Technical Support & Document > Technical Documents from the navigation menu at the top. Then select a product for its documents. Approach 2: In the homepage of H3C at http:// www.h3c.com, select Support > Technical Documents. Then select a product for its documents.

How to apply for an account

Access the homepage of H3C at http:// www.h3c.com and click on Registration at the top right. In the displayed page, provide your information and click on Submit to register.

How to get documentation

Approach 1:

In the homepage of H3C at http:// www.h3c.com, select Technical Support & Document > Technical Documents from the navigation menu at the top. Then select a product for its documents.

Approach 2:

In the homepage of H3C at http:// www.h3c.com, select Support > Technical Documents. Then select a product for its documents.

1.3 Software Release Notes

With software upgrade, new software features may be added. You can acquire the information about the newly added software features through software release notes.

Chapter 2 Documentation and Software Version

2.1 Software Version for the Manual

H3C S3610&S5510 Series Ethernet Switches Operation Manual Release 0001 and H3C S3610&S5510 Series Ethernet Switches Command Manual Release 0001 correspond to the following three software versions of the S3610&S5510 series switches: Release 0001.

2.2 Document List

Table 2-1 Document list

Name	Version
H3C S3610 Series Ethernet Switches Installation Manual	(V1.02)
H3C S5510 Series Ethernet Switches Installation Manual	(V1.02)
H3C S3610&S5510 Series Ethernet Switches Operation Manual – Release 0001	(V1.02)
H3C S3610&S5510 Series Ethernet Switches Command Manual – Release 0001	(V1.02)

Chapter 3 Product Overview

3.1 Preface

H3C S3610&S5510 Series Ethernet Switches are wire speed L2/L3 Ethernet switches developed by H3C Technology. They are intelligent network management switches intended for a network environment where high performance, dense port distribution, and ease of installation are required.

The H3C S3610&S5510 series are designed to accommodate the convergence on Intranets and metropolitan area networks (MANs) and to meet the requirements at the access layer. Supporting IPv4/IPv6 double stack, they offer abundant service features and routing functionalities.

3.2 Switch Models

Table 3-1 lists the models in the H3C S3610 series:

Table 3-1 Models in the H3C S3610 series

Model	Power supply unit (PSU)	Number service ports	Number of 100 Mbps ports	Number of 1,000 Mbps uplink ports	Console port
S3610-28P	AC-input, DC-input	28	24 10/100 Mbps (electrical)	4 (SFP)	1
S3610-28TP	AC-input, DC-input	28	24 10/100 Mbps (electrical)	2 (SFP) 2 × 10/100/1,000 Mbps (electrical)	1
S3610-28F	AC-input, DC-input	28	24 × 100M SFP ports	2 (SFP) 2 × 10/100/1,000 Mbps (electrical)	1
S3610-52P	AC-input, DC-input	52	48 10/100 Mbps (electrical)	4 (SFP)	1

Table 3-2lists the models in the S5510 series:

Table 3-2 Models in the S5510 series

Model	Power supply unit (PSU)	Number of service ports	Port	Console port
H3C S5510-24P-AC	AC-input	28	24 × 10/100/1000 Mbps (electrical) 4 Gigabit SFP Combo port	1
H3C S5510-24P-DC	DC-input	28	24 × 10/100/1000 Mbps (electrical) 4 Gigabit SFP Combo ports	1
H3C S5510-24F-AC	AC-input	28	24 Gigabit SFP ports 4 × 10/100/100 Mbps Combo (electrical)	1
H3C S5510-24F-DC	DC-input	28	24 Gigabit SFP ports 4 × 10/100/1000 Mbps Combo ports	1

There are two power slots on the rear panel of an S5510 Ethernet switch. An S5510 Ethernet switch is shipped with a power supply module installed in the power supply slot PWR1 only. The power supply slot PWR2 is covered by a blank panel. You can optionally install an AC/DC power supply module in PWR2 slot as a backup of PWR1.

Table 3-3 The list of Combo interfaces

Specification	Combo ports	Matching ports
S5510-24P/S5510-24F	25	22
	26	24
	27	21
	28	23

3.3 Software Features

H3C S3610&S5510 series Ethernet switches provide abundant software features to meet different requirements of users. The following table lists the features of each part.

Table 3-4 Features of S3610&S5510 series Ethernet switches

Part	Feature
01-Login	l Logging into a switch through the Console port l Logging into a switch by using Telnet or SSH through an Ethernet port l Logging into a switch by using Modem through the Console port l Logging into a switch through Web or NMS
02-VLAN Configuration	l IEEE 802.1Q-compliant virtual local area network (VLAN). l Port-based VLAN l Protocol-based VLAN l Voice VLAN l GARP VLAN Registration Protocol (GVRP)
03-IP Address and Performance Configuration	l Configuring an IP address for a switch l Configuring TCP attributes for a switch
04-QinQ-BPDU TUNNEL	l QinQ l Flexible QinQ l BPDU TUNNEL
05-Port Correlation Configuration	l Three port states: Access, Trunk, and Hybrid. l Setting broadcast suppression ratio globally. l Loopback detection l Cable test l Link aggregation control protocol (LACP) l Configuring port isolation group
06-MAC Address Table Management	l Configuring dynamic, static, and blackhole MAC addresses l Configuring aging time for MAC addresses l Configuring MAC address learning limit on each port
07-MAC-IP-Port Binding	l Configuring the binding of the MAC address, IP address and port of a user
08-MSTP	l STP/RSTP/MSTP l BPDU guard l Root guard l Loop guard l TC-BPDU attack guard
09-Routing Overview	Provide an overview of IPv4/IPv6 routing and routing table display and maintenance.
10-IPv4 Routing	l Static route l Routing information protocol (RIP) v1/v2 l Open shortest path first (OSPF) l Intermediate System-to-Intermediate System intra-domain routing information exchange protocol (IS-IS) l Border gateway protocol (BGP) l Routing policy
11-IPv6 Routing	l IPv6 static route l RIPng l OSPFv3 l IS-ISv6 l BGP4+ l IPv6 routing policy
12-IPv6 Configuration	l IPv6 basic configuration l Ping IPv6/Traceroute IPv6 l Manual IPv6 tunnel l Configuring IPv4 compatible with the IPv6 tunnel l 6to4 tunnel l ISATAP tunnel l IPv4/IPv6 double protocol stacks
13-Multicast Protocol	l Internet group management protocol (IGMP) Snooping l Multicast listener discovery (MLD)-Snooping l Configuring a multicast policy l Internet group management protocol (IGMP) l Protocol-independent multicast-dense mode (PIM-DM) l Protocol-independent multicast-sparse mode (PIM-SM) l Multicast source discovery protocol (MSDP)
14-802.1x-HABP-MAC Address Authentication	l 802.1x authentication l Guest VLAN l Huawei authentication bypass protocol (HABP) l MAC address authentication
15-AAA-RADIUS-HWTACACS	l Authentication, authorization, and accounting (AAA) l Remote authentication dial-in user service (RADIUS) l Huawei terminal access controller access control system (HWTACACS)
16-ARP	l Configuring ARP entries manually l Gratuitous ARP l ARP source suppression l Proxy ARP
17-DHCP	l DHCP server l DHCP relay l DHCP Snooping l Applying option184 in DHCP server function l Applying option82 in DHCP server/DHCP relay function
18-ACL	l IPv4 basic ACLs l IPv4 advanced ACLs l IPv4 Layer 2 ACLs l IPv4 user-defined ACLs l IPv6 basic ACLs l IPv6 advanced ACLs l Flow template
19-QoS	l Traffic classification, traffic policing, and traffic shaping l QoS policy l Congestion management l Priority mapping l Congestion avoidance l Aggregated CAR l VLAN policy l Traffic mirroring
20-Port Mirroring	l Local port mirroring l Remote port mirroring
21-Cluster	l Huawei group management protocol (HGMP) v2 l Neighbor discovery protocol (NDP) l Neighbor topology discovery protocol (NTDP)
22-UDP Helper	l Forwarding UDP broadcast packets by using UDP Helper
23-SNMP and RMON	l Simple network management protocol (SNMP) v3, compatible with SNMP v1/v2 l Remote monitoring (RMON)
24-NTP	l Network time protocol (NTP)
25-DNS	l Static DNS l Dynamic DNS
26-File System Management	l File system management l Configuration file management l Configuring a switch as an FTP server/FTP client l Configuring a switch as a TFTP client
27-Information Center	l System logs l Alarms in different severities l Debugging information output
28-System Maintenance and Debugging	l Configuring command levels l Configuring online help for command lines l Configuring system time l Selecting language (Chinese/English) l Displaying and configuring system device state
29-HWPing	l Hwping
30-VRRP	l IPv4-based virtual router redundancy protocol (VRRP) l IPv6-based VRRP
31-SSH	l Secure shell (SSH)

Chapter 4 Networking Applications

4.1 H3C S3610 Series Ethernet Switches Networking Applications

4.1.1 Broadband Ethernet Access for Residential Communities

On the broadband access network of a residential community, an H3C S3610 switch is located in the center. It is downlinked to the S2000 or S3026 series to reach the Ethernet users and uplinked to a core L3 switch through a GE extension module to connect to the MAN backbone.

Figure 4-1 Community Ethernet access networking with H3C S3610 series

4.1.2 Application in Networks of Branches or Small- to Medium-Sized Enterprises

For small-to medium-sized enterprises or branches of a large enterprise, the H3C S3610 series can serve as the backbone switches on their networks and can be connected to the headquarters or other branches through routers.

Figure 4-2 H3C S3610 series application in branch network of midsize/large enterprise

4.1.3 Application in Large Enterprise and Campus Networks

In a large enterprise or campus network, the H3C S3610 series are located at the convergence layer. They are downlinked to layer 2 switches, S3000 Series for example; and uplinked to a layer 3 switch through GE interfaces. These switches together provide a network-wide intranet solution that covers gigabit-to-backbone and 100 Mbps-to-desktop.

Figure 4-3 H3C S3610 series application in large enterprise and campus network

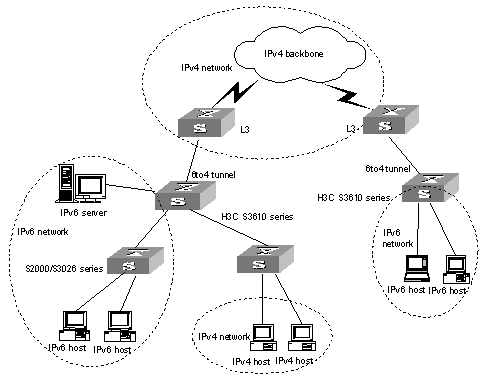

4.1.4 IPv4/IPv6 Hybrid Networking

Full IPv4 networking and full IPv6 networking are similar. At the early stage of IPv6 implementation, however, IPv4/IPv6 hybrid networks are common. This gives full play to the IPv4/IPv6 dual-stack and IPv6 over IPv4 tunneling features provided by the H3C S3610 series and enables flexible networking.

Figure 4-4 Application in a large enterprise and campus IPv4/IPv6 hybrid network

4.2 H3C S5510 Series Ethernet Switches Networking Applications

4.2.1 Broadband Ethernet Access for Residential Communities

An H3C S5510 series Ethernet switch can operate on the distribution layer of a broadband MAN. You can connect it to a backbone router or Layer 3 switch in the uplink direction through its GigabitEthernet optical ports, and connect it to Layer 2/Layer 3 devices operating as the portal devices of community networks through its GigabitEthernet optical ports. Additionally, you can use multiple GigabitEthernet ports to form GigabitEthernet trunk ports so as to broaden the uplink and downlink bandwidth.

Figure 4-5 Network diagram for using H3C S5510 series Ethernet switches in broadband MAN

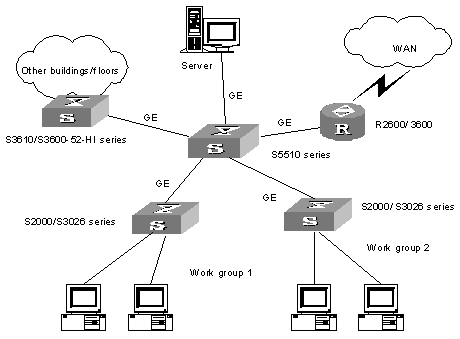

4.2.2 Application in Networks of Branches or Small/Medium-Sized and Large Enterprises

In the branches of a small-/medium-sized or large enterprises, you can use H3C S5510 series Ethernet switches as the backbone layer devices. In this case, network devices can connect to an S5510 Ethernet switch in the following ways.

l Connecting the Layer 2/Layer 3 Ethernet switches (such as S3026/3526 Ethernet switches) of workgroups to GigabitEthernet optical ports or electrical interfaces

l Connecting to the other floors/buildings through long-/short-haul GigabitEthernet optical ports

l Connecting to the server directly through GigabitEthernet/100 Mbps electrical ports or connecting to the server group through the Layer 2/Layer 3 Ethernet switches in the workgroup through GigabitEthernet/100 Mbps electrical ports

l Connecting to routers through 10/100 Mbps electrical ports

Figure 4-6 Network diagram for using H3C S5510 series Ethernet switches in networks of small-/medium-sized and large enterprises

4.2.3 Application in Large Enterprise and Campus Networks

H3C S5510 series Ethernet switches can operate as the distribution layer devices in the networks of large enterprises and campus networks. In this case, you can connect an S5510 Ethernet switch to a backbone router or Layer 3 switches through its GigabitEthernet optical ports or electrical ports, and connect Layer 2 or Layer 3 devices in workgroups to the GigabitEthernet optical ports or electrical ports of the S5510 Ethernet switch.
