FLOM network adapter specifications
The figures in this section are for illustration only.
FLOM network adapter list
Table 1 FLOM network adapters
|
Model |
Specifications |
|
NIC-10GE-2P-530F-L2 |
2-port 10-GE optical interface LOM network adapter (SFP+) |
|
NIC-10GE-2P-560F-LOM |
2-port 10-GE optical interface LOM network adapter (SFP+) |
|
NIC-GE-4P-360T-L2 |
4-port GE electrical interface LOM network adapter |
|
CNA-560T-L2-10Gb-2P |
2-port GE electrical interface LOM network adapter |
NIC-10GE-2P-530F-L2
Figure 1 NIC-10GE-2P-530F-L2
Ports and LEDs
Figure 2 NIC-10GE-2P-530F-L2 front panel
|
(1) SFP+ fiber port ACT LED |
(2) SFP+ fiber port LINK LED |
|
(3) 10-GE SFP+ fiber ports (2 in total) |
|
|
|
NOTE: For information about the fiber port LEDs, see Table 10. |
Technical specifications
Table 2 NIC-10GE-2P-530F-L2 technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
Qlogic BCM57810S |
|
Maximum power consumption |
10 W |
|
Bus type |
PCIe2.0 ×8 |
|
Form factor |
FLOM |
|
Network properties |
|
|
Connectors |
2 × 10-GE SFP+ |
|
Data rate |
10 Gbit/s |
|
Transmission media |
Optical fiber |
|
Duplex mode |
Full duplex |
|
Standards |
802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az |
|
Available transceiver modules |
See "About H3C Network Adapters." |
Features
Table 3 NIC-10GE-2P-530F-L2 features
|
Feature |
Supported |
|
Jumbo Frames |
√ |
|
Load Balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-Negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√ |
|
VMDq |
√* |
|
Multiple Rx Queues (RSS) |
√ |
|
TCP/IP Stateless Offloading |
√ |
|
TCP/IP Offload Engine (TOE) |
√* |
|
Wake-on-LAN |
√ |
|
RDMA |
× |
|
NPAR |
√ |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
× |
|
IPv6 |
√ |
|
LLDP |
× |
|
LLDP Pass-through |
√ |
|
Remote boot |
|
|
PXE Boot |
√ |
|
FCoE Boot |
× |
|
iSCSI Boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Only one port on the network adapter supports NCSI at a time. |
NIC-10GE-2P-560F-LOM
Figure 3 NIC-10GE-2P-560F-LOM
Ports and LEDs
Figure 4 NIC-10GE-2P-560F-LOM front panel
|
(1) SFP+ fiber port ACT LED |
(2) SFP+ fiber port LINK LED |
|
(3) 10-GE SFP+ fiber ports (2 in total) |
|
|
|
NOTE: For information about the fiber port LEDs, see Table 10. |
Technical specifications
Table 4 NIC-10GE-2P-560F-LOM technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
Intel JL82599 |
|
Maximum power consumption |
15 W |
|
Bus type |
PCIe2.0 ×8 |
|
Form factor |
FLOM |
|
Network properties |
|
|
Connectors |
2 × 10-GE SFP+ |
|
Data rate |
10 Gbit/s |
|
Transmission media |
Optical fiber |
|
Duplex mode |
Full duplex |
|
Standards |
802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az |
|
Available transceiver modules |
See "About H3C Network Adapters." |
Features
Table 5 NIC-10GE-2P-560F-LOM features
|
Feature |
Supported |
|
Jumbo Frames |
√ |
|
Load Balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-Negotiation |
√ |
|
FCoE |
√** |
|
iSCSI |
√ |
|
SRIOV |
√ |
|
VMDq |
√ |
|
Multiple Rx Queues (RSS) |
√ |
|
TCP/IP Stateless Offloading |
√* |
|
TCP/IP Offload Engine (TOE) |
√* |
|
Wake-on-LAN |
× |
|
RDMA |
× |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
× |
|
LLDP Pass-through |
√ |
|
Remote boot |
|
|
PXE Boot |
√ |
|
FCoE Boot |
× |
|
iSCSI Boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Two asterisks (**) indicate that the feature is not available for H3C CAS or VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
NIC-GE-4P-360T-L2
Figure 5 NIC-GE-4P-360T-L2
Ports and LEDs
Figure 6 NIC-GE-4P-360T-L2 front panel
|
(1) RJ-45 copper port LINK LED |
(2) RJ-45 copper port ACT LED |
|
(3) 10/100/1000Base-T autosensing Ethernet ports 1 through 4 (from right to left) |
|
|
|
NOTE: For information about the copper port LEDs, see Table 11. |
Technical specifications
Table 6 NIC-GE-4P-360T-L2 technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
Intel NHI350AM |
|
Maximum power consumption |
5 W |
|
Bus type |
PCIe2.0 ×4 |
|
Form factor |
FLOM |
|
Network properties |
|
|
Connectors |
4 × RJ-45 |
|
Data rate |
10/100/1000 Mbit/s |
|
Transmission media |
STP cable |
|
Duplex mode |
Full duplex |
|
Standards |
802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az |
Features
Table 7 NIC-GE-4P-360T-L2 features
|
Feature |
Supported |
|
Jumbo Frames |
√ |
|
Load Balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-Negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√* |
|
VMDq |
√* |
|
Multiple Rx Queues (RSS) |
√* |
|
TCP/IP Stateless Offloading |
√* |
|
TCP/IP Offload Engine (TOE) |
× |
|
Wake-on-LAN |
√ |
|
RDMA |
× |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
× |
|
LLDP Pass-through |
√ |
|
Remote boot |
|
|
PXE Boot |
√ |
|
FCoE Boot |
× |
|
iSCSI Boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
CNA-560T-L2-10Gb-2P

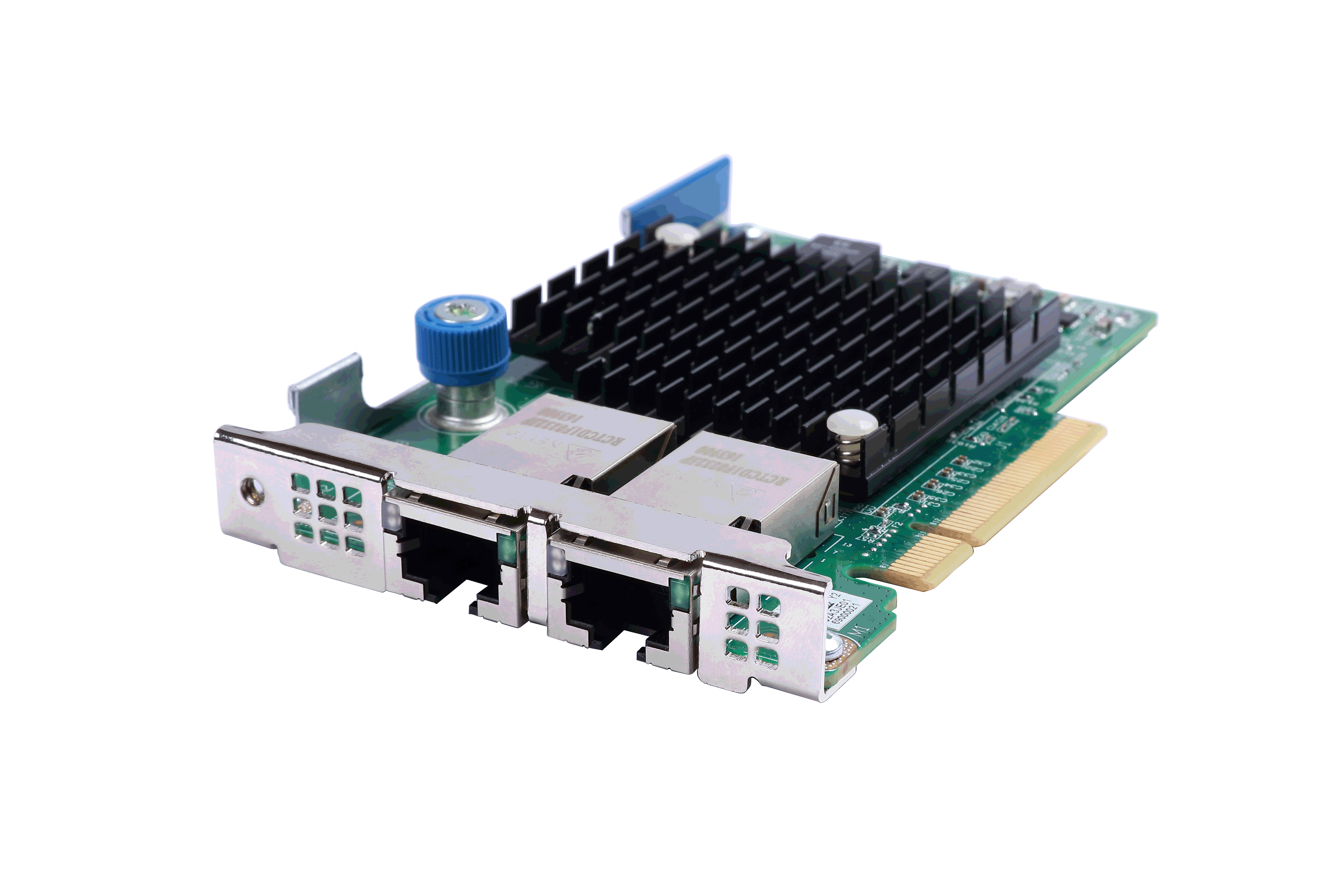

Figure 7 CNA-560T-L2-10Gb-2P
Ports and LEDs
Figure 8 CNA-560T-L2-10Gb-2P front panel
|
(1) RJ-45 copper port LINK LED |
(2) RJ-45 copper port ACT LED |
|
(3) 1/10Gbit/s autosensing Ethernet ports 1 and 2 (from right to left) |
|
|
|
NOTE: For information about the copper port LEDs, see Table 11. |
Technical specifications
Table 8 CNA-560T-L2-10Gb-2P technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
Intel ELX550AT2SLL2E |
|
Maximum power consumption |
12 W |
|
Bus type |
PCIe3.0 ×4 |
|
Form factor |
FLOM |
|
Network properties |
|
|
Connectors |
2 × RJ-45 |
|
Data rate |
1/10 Gbit/s |
|
Transmission media |
STP cable |
|
Duplex mode |
Full duplex |
|
Standards |
802.3, 802.3u, 802.3x, 802.1q, 802.3az, 802.3an, 802.3bz, 802.3ac, 802.1Qbb, 802.1Qaz, 802.1p |
Features
Table 9 CNA-560T-L2-10Gb-2P features
|
Feature |
Supported |
|
Jumbo Frames |
√ |
|
Load Balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-Negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√ |
|
VMDq |
√ |
|
Multiple Rx Queues (RSS) |
√ |
|
TCP/IP Stateless Offloading |
√* |
|
TCP/IP Offload Engine (TOE) |
√* |
|
Wake-on-LAN |
√ |
|
RDMA |
× |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
× |
|
LLDP Pass-through |
√ |
|
Remote boot |
|
|
PXE Boot |
√ |
|
FCoE Boot |
× |
|
iSCSI Boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
LEDs
Table 10 SFP+/SFP28 port status LED description
|
Status |
Description |
|
|
LINK (amber) |
ACT (green) |
|
|
Steady on |
Flashing |
The port is sending or receiving data. |
|
Steady on |
Off |
A link is present, but the port is not sending or receiving data. |
|
Off |
Off |
No link is present. |
Table 11 RJ-45 port status LED description
|
Status |
Description |
|
|
LINK (green) |
ACT (green) |
|
|
Steady on |
Flashing |
The port is sending or receiving data. |
|
Steady on |
Off |
A link is present, but the port is not sending or receiving data. |
|
Off |
Off |
No link is present. |
